Rubber shoe mixing process footwear industry

The Significance of Rubber in Footwear Soles

The sole is arguably the most critical component of a shoe, bearing the brunt of impact, providing traction, and insulating the foot from the ground. Rubber, owing to its unique viscoelastic properties, unparalleled grip, and excellent abrasion resistance, has long been the material of choice for footwear outsoles and midsoles. The specific type of rubber and the way it is compounded determine a shoe’s suitability for various applications, whether it’s the high-grip sole of a hiking boot, the flexible outsole of a running shoe, or the durable bottom of a work boot.

The Core Objective: Tailoring Properties

The overarching goal of the rubber mixing process in footwear is to create a rubber compound with a precise set of characteristics tailored to the specific demands of the shoe’s intended use. These properties include:

• Grip (Traction): Essential for preventing slips on various surfaces (wet, dry, icy, uneven).

• Flexibility: Allows the sole to bend and conform to the foot’s natural movement, enhancing comfort and reducing fatigue.

• Wear Resistance (Abrasion Resistance): Dictates the lifespan of the sole, resisting degradation from repeated contact with abrasive surfaces.

• Durability: Overall ability to withstand repeated stress, deformation, and environmental factors without significant deterioration.

• Cushioning/Shock Absorption: Especially important for athletic and comfort footwear, absorbing impact forces.

• Rebound: The ability of the rubber to return to its original shape after deformation, contributing to energy return in athletic shoes.

• Hardness: Measured by durometer, this property influences grip, durability, and feel.

• Specific Gravity: Impacts the weight of the sole, crucial for lightweight footwear.

• Processability: How easily the rubber compound can be formed, molded, and vulcanized.

• Environmental Resistance: Resistance to factors like ozone, UV light, oil, and chemicals, depending on the application.

• Colorability: For aesthetic purposes, especially in fashion footwear.

Achieving this delicate balance of properties requires a deep understanding of the raw materials and their interactions during the mixing and subsequent vulcanization stages.

Raw Materials: The Building Blocks

The rubber mixing process begins with a carefully selected array of raw materials, each contributing specific attributes to the final compound.

1. Base Polymers (Rubbers)

The foundation of the compound, determining its fundamental characteristics. Common rubber polymers used in footwear include:

• Natural Rubber (NR): Derived from the latex of the Hevea brasiliensis tree. Offers excellent tensile strength, tear strength, elasticity, and good abrasion resistance. Often used where high resilience and good wet grip are required.




• Styrene-Butadiene Rubber (SBR): A synthetic rubber, often used in blends with natural rubber. Provides good abrasion resistance, better aging resistance than natural rubber, and can be more cost-effective.

• Butadiene Rubber (BR): Known for its excellent abrasion resistance, low heat buildup, and good flexibility at low temperatures. Often blended with other rubbers to enhance these properties.

• Ethylene Propylene Diene Monomer (EPDM) Rubber: Excellent resistance to ozone, weathering, and UV radiation. Less common for outsoles but used in specific applications requiring environmental durability.

• Nitrile Butadiene Rubber (NBR): Offers good oil and chemical resistance. Used in work boots or specialized footwear exposed to such substances.



• Thermoplastic Rubbers (TPRs/TPEs): A class of materials that combine the processing advantages of thermoplastics with the elasticity of rubber. They can be injection molded, reducing processing steps. TPRs offer good grip, flexibility, and lightweight properties. Often used for casual, fashion, and some athletic footwear where the highest levels of abrasion resistance are not paramount.



The choice of base polymer or blend of polymers is the first critical decision in compounding, directly impacting the compound’s intrinsic properties.

2. Fillers

Inorganic materials added to modify properties and often to reduce cost.

• Carbon Black: The most common and important filler. It significantly enhances tensile strength, abrasion resistance, tear strength, and modulates hardness. Different grades of carbon black (e.g., N330, N550, N660) impart varying levels of reinforcement and properties. It also provides UV protection.



• Silica: Another reinforcing filler, particularly effective in enhancing wet grip and reducing rolling resistance. Often used in “green” tires and increasingly in performance footwear for superior wet traction. Requires silane coupling agents to bond effectively with the polymer.

• Clay (Kaolin): Used as a semi-reinforcing filler or extender. Improves stiffness and processing characteristics.

• Calcium Carbonate: Primarily an extender, reduces cost, can improve processability and hardness.



• Titanium Dioxide: Used primarily for pigmentation (white color) and UV resistance.

3. Processing Aids

Materials that facilitate the mixing and processing of the rubber compound.

• Process Oils (Plasticizers): Improve the flow characteristics of the rubber during mixing, reduce compound viscosity, and can enhance low-temperature flexibility. Examples include paraffinic, naphthenic, and aromatic oils.




• Stearic Acid: Acts as a dispersing agent for fillers and an activator for accelerators during vulcanization.

• Zinc Oxide (ZnO):

• Essential activator for sulfur vulcanization, improving cure rate and efficiency.

• Dispersing Agents:

• Help distribute fillers evenly throughout the rubber matrix, preventing agglomeration.



4. Protective Agents (Antioxidants and Antiozonants)

Protect the rubber from degradation caused by oxygen, ozone, heat, and UV light.

• Antioxidants: Prevent oxidation, which leads to chain scission and embrittlement.

• Antiozonants: Protect against ozone cracking, especially important for dynamic applications.



• Waxes: Bloom to the surface, forming a protective barrier against ozone.



5. Curing Agents (Vulcanizing Agents)

The most critical component for transforming the plastic rubber mixture into an elastic, durable material.

• Sulfur:

• The most common vulcanizing agent. Forms cross-links between rubber polymer chains.

• Accelerators: Speed up the vulcanization process, improve efficiency, and enhance specific properties. Examples include thiazoles, sulfenamides, thiurams, and guanidines. Different accelerators are chosen for different cure characteristics (e.g., fast cure, delayed action, scorch safety).



• Activators: (e.g., Zinc Oxide, Stearic Acid) Work synergistically with accelerators to facilitate cross-linking.



• Retarders: (e.g., benzoic acid, cyclohexylthiophthalimide CTP) Used to delay the onset of vulcanization (scorch time), providing a safer processing window.



6. Pigments

For coloring the rubber compound to meet aesthetic requirements.

The Rubber Mixing Process: Stages and Machinery

The mixing process is typically carried out in a series of stages to ensure proper dispersion of ingredients and development of desired properties.

Stage 1: Masterbatch Mixing (Internal Mixer)

The primary mixing stage where the base polymer, reinforcing fillers (carbon black, silica), processing aids, and protective agents are incorporated. This stage is crucial for achieving high shear forces to break down the rubber polymer (mastication) and effectively disperse the fillers.

Machinery: Internal Mixers (Banbury Mixers) are the workhorses of this stage. They consist of a sealed mixing chamber with two intermeshing rotors that rotate at differential speeds.

Process:

1. Loading: The rubber polymer, often in bale form, is fed into the mixing chamber.



2. Mastication: The rotors begin to shear and compress the rubber, breaking down its molecular chains, which reduces viscosity and increases plasticity. This process generates significant heat.



3. Filler Incorporation: Fillers (carbon black, silica) are gradually added. The high shear forces in the mixer help to break up filler agglomerates and disperse them uniformly throughout the rubber matrix.



4. Additive Introduction: Processing oils, antioxidants, and other additives are introduced.



5. Temperature Control: The mixing process is exothermic (generates heat). Temperature control is critical to prevent premature vulcanization (scorch) and to achieve optimal dispersion. Cooling water circulates through the mixer’s jacket and rotors.





6. Discharge: Once the desired mixing time and temperature are reached, the batch is discharged onto a two-roll mill or directly to a calender.

Key Considerations in Masterbatch Mixing:

• Fill Factor: The volume of materials loaded relative to the mixer’s capacity, influencing mixing efficiency.



• Rotor Speed: Higher speeds generate more shear and heat, affecting dispersion and mastication.

• Ram Pressure: Applies pressure to the batch, enhancing mixing efficiency.

• Mixing Time and Temperature: Crucial parameters that dictate the degree of dispersion and mastication. Too high a temperature or too long a mixing time can degrade the polymer.



• Sequence of Addition: The order in which ingredients are added is carefully controlled to optimize dispersion and minimize energy consumption. For example, highly reinforcing fillers are typically added after initial mastication of the polymer.



The output from the internal mixer is a “masterbatch” – a homogeneous blend of rubber, fillers, and other non-curative ingredients. It is typically in sheet form, cooled, and stored.

Stage 2: Final Mixing (Two-Roll Mill or Internal Mixer)

In this stage, the curing agents (sulfur, accelerators, activators) and any heat-sensitive additives (like certain pigments) are incorporated into the masterbatch. This stage is performed at a lower temperature than the masterbatch mixing to prevent premature vulcanization (scorch).

Machinery:

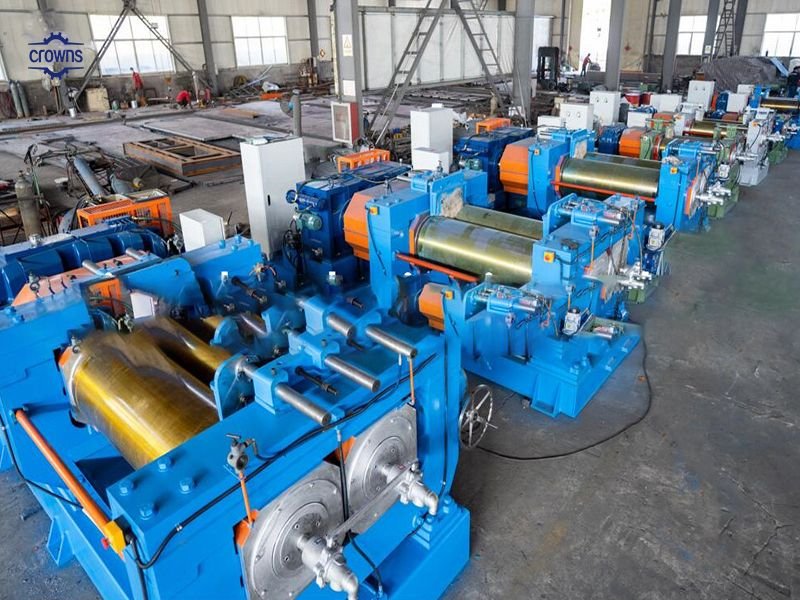

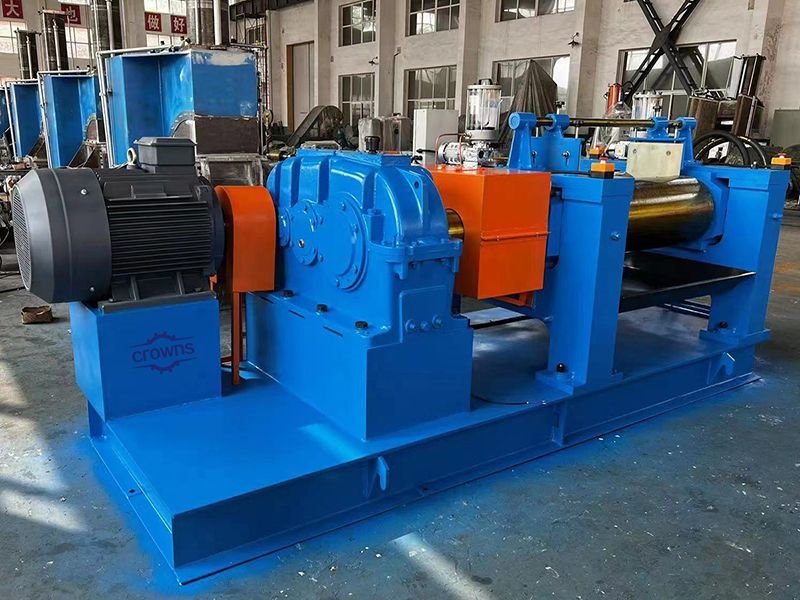

• Two-Roll Mill: Consists of two horizontally mounted, counter-rotating rolls, one typically faster than the other. The rubber compound forms a “nip” between the rolls, allowing for shear mixing and uniform distribution of additives.




• Internal Mixer: Smaller internal mixers can also be used for final mixing, but they require precise temperature control and shorter mixing times.

Process (using a two-roll mill):

1. Feeding: The masterbatch is fed onto the two-roll mill.



2. Banding: The rubber forms a band around one of the rolls.

3. Additive Introduction: The curing agents and other sensitive additives are added gradually to the rolling bank of rubber.

4. Cut and Fold: The operator repeatedly cuts and folds the rubber sheet on the mill to ensure thorough mixing and dispersion of the curatives. This manual process is critical for achieving uniformity.



5. Cooling: The rolls are water-cooled to maintain the desired temperature and prevent scorch.



6. Sheeting: Once mixing is complete, the compound is sheeted off the mill in a continuous sheet.



Key Considerations in Final Mixing:

• Temperature Control: Absolutely critical to avoid scorch. The temperature is kept below the activation temperature of the curing system.

• Mixing Time: Sufficient to achieve uniform dispersion, but not so long as to risk scorch.

• Dispersion of Curatives: Even distribution of sulfur and accelerators is paramount for consistent vulcanization and uniform final properties. Poor dispersion can lead to soft spots or under-cured areas in the final sole.



The output from this stage is the final, ready-to-process rubber compound. It is typically cooled, cut into appropriate sizes (slabs, strips, or pellets), and stored in a cool, dark place to prevent scorch or degradation before further processing.

Quality Control in Rubber Mixing

Rigorous quality control is essential at every stage of the rubber mixing process to ensure consistency and meet performance specifications.

1. Raw Material Inspection:

• Visual Inspection: Checking for contamination, lumps, or discoloration.

• Chemical Analysis: Verifying the purity and composition of polymers, fillers, and additives.

• Moisture Content: Especially for fillers, as moisture can affect processing and final properties.

2. In-Process Testing (During Mixing):

• Temperature Monitoring: Continuous monitoring of batch temperature in the internal mixer.

• Power Consumption: Monitoring the energy consumed by the mixer, which can indicate the degree of mastication and dispersion.

• Rheometer/Mooney Viscometer: Samples are often taken to measure the viscosity (Mooney viscosity) and curing characteristics (rheometer) of the compound.

  • Mooney Viscosity: Indicates the processability of the compound. A consistent Mooney value ensures predictable behavior during subsequent processing steps (e.g., extrusion, molding).

  • Rheometer (Oscillating Disk or Rotorless): Measures the torque required to oscillate a rotor in a sample over time at a specific temperature. This provides a “cure curve” that reveals:

    • Minimum Torque (ML): Indicative of compound viscosity.

    • Scorch Time (Ts): The time until the onset of vulcanization, a critical safety parameter.



    • Optimum Cure Time (T90 or Tc90): The time to reach 90% of the maximum cure, indicating the ideal vulcanization time.

    • Maximum Torque (MH): Indicates the stiffness/cross-link density of the fully cured rubber.

    • Delta Torque (MH-ML): Represents the extent of cross-linking.



3. Post-Mixing (Final Compound Testing):

• Specific Gravity: To check compound density.

• Hardness (Durometer): Measured using Shore A or D scales, indicating the stiffness of the cured rubber.



• Tensile Strength and Elongation at Break: Measured on cured samples to determine the material’s strength and elasticity.



• Tear Strength: Resistance to tearing.

• Abrasion Resistance: Using equipment like DIN abrasion tester or Taber Abraser to simulate wear.



• Flex Cracking Resistance: Using a De Mattia flex tester, relevant for sole applications involving repeated bending.



• Rebound Resilience: Measures the elasticity of the rubber after impact.

• Aging Tests: Samples are subjected to elevated temperatures and/or ozone to accelerate aging and predict long-term performance.

• Color Consistency: For pigmented compounds.

Shaping and Vulcanization

Once the rubber compound is mixed, it proceeds to shaping and vulcanization.

Shaping (Pre-forming)

The mixed rubber compound, now in sheet or strip form, is prepared for molding. Common methods include:

• Calendering: The compound is passed through a series of heated rolls to produce sheets of uniform thickness, often used for layering or subsequent cutting.

• Extrusion: The compound is forced through a die to create continuous profiles, such as strips or pre-forms for injection molding.



• Cutting/Blanking: Sheets of compound are cut into specific shapes (blanks) that fit the mold cavity.

Vulcanization (Curing)

This is the irreversible chemical process that transforms the plastic rubber compound into a highly elastic, durable, and stable material. It involves the formation of cross-links between the long polymer chains, typically using sulfur under heat and pressure.

Process:

1. Mold Preparation: The pre-formed rubber blanks are placed into heated molds (compression molding) or injected into mold cavities (injection molding).

2. Heat and Pressure: The molds are heated to a specific temperature (typically 140-190°C) and subjected to pressure.

3. Cross-linking: The heat activates the curing agents (sulfur, accelerators, activators), initiating the cross-linking reaction. The sulfur atoms form bridges (cross-links) between the polymer chains, creating a three-dimensional network structure.



4. Cure Time: The compound is held at the curing temperature and pressure for a precisely determined period (cure time), which is derived from rheometer tests to achieve optimal properties without over-curing or under-curing.

5. Cooling and Demolding: After the cure cycle, the molds are opened, and the vulcanized soles are removed, often cooled to stabilize their shape.



Methods of Vulcanization in Footwear:

• Compression Molding: The most common method for footwear soles. Rubber blanks are placed in a heated mold, and pressure is applied to fill the cavity and facilitate vulcanization.

• Injection Molding: For TPRs and some thermoset rubbers, the heated compound is injected under high pressure into a closed mold, where it cures. This method offers high efficiency for complex geometries.

• Direct Vulcanization to Upper: In some constructions (e.g., certain athletic or work boots), the rubber outsole is directly vulcanized onto the shoe upper, creating a strong bond.



Future Trends and Innovations

The rubber mixing process continues to evolve with advancements in materials science and manufacturing technology:

• Sustainable Materials: Increasing focus on natural rubber, recycled rubber, and bio-based additives to reduce environmental impact.

• Smart Materials: Exploration of materials that can adapt their properties in response to stimuli (e.g., temperature, pressure).



• Advanced Fillers: Research into novel nano-fillers and functionalized fillers to achieve superior properties with lower material usage.

• Simulation and Modeling: Use of computational tools to predict mixing behavior, optimize formulations, and reduce trial-and-error.



• Automation and Industry 4.0: Greater automation in material handling, mixing, and quality control, leveraging data analytics and AI for process optimization.

• Direct Injection Technologies: Further refinement of injection molding for rubber soles to achieve greater design freedom, reduced waste, and faster production cycles.



• Foamed Rubbers: Development of lightweight, foamed rubber compounds for improved cushioning and energy return in midsoles and outsoles.

Conclusion

The rubber mixing process in the footwear industry is a sophisticated blend of chemistry, engineering, and manufacturing expertise. It is the critical foundation upon which the performance, durability, and comfort of a shoe sole are built. From the careful selection of raw materials to the precise control of mixing parameters and the final vulcanization, every step is meticulously managed to engineer a material that can withstand the rigors of wear while providing optimal grip, flexibility, and cushioning. As the demands on footwear continue to evolve, so too will the innovations in rubber mixing, pushing the boundaries of what is possible in sole technology and contributing significantly to the overall quality and functionality of footwear.

Disclaimer:

This document describes the general process of rubber shoe batch mixing for informational purposes only. While every effort has been made to ensure accuracy, the information provided may not be exhaustive or applicable to all specific manufacturing environments or rubber formulations. Actual industrial processes may involve variations, proprietary techniques, and specific safety protocols that are not detailed herein. Readers are advised to consult with qualified professionals and refer to official industry standards and safety guidelines when implementing or working with rubber mixing processes. The author and publisher are not responsible for any errors or omissions, or for any actions taken based on the information presented.
